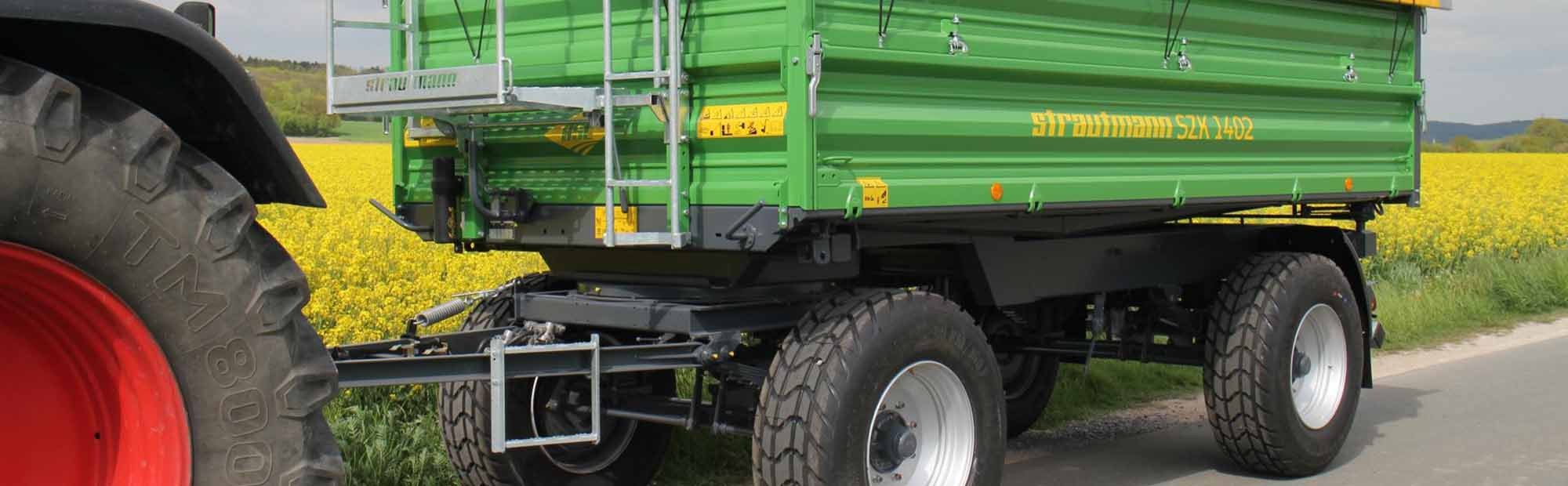

Strautmann Three-way tipping trailer SZK

• Description
• Specifications

• Strautmann double-axle tipping trailer SZK 802 - 1802

  • Gross vehicle weight rating of 8 t – 18 t

  • Varied body models for any demand

  • Double-axle chassis for stable standing

  • Clean discharge thanks to conical platform (except for SZK 1802)

  High quality with variable Body and extensive equipment models - That makes a Strautmann tipping trailer.



  Chassis

  • Solid chassis for safe driving characteristics
  • Long service life
  • High stability with the wagon tilted
  • Varied versions for any application

• Dimensions
  Length (m)	6,55	6,67	7,40
  Width (m)	2,36	2,36	2,55
  Platform height (m)	1,26	1,32	1,38
  Model	SZK 802	SZK 1402	SZK 1802
  Gross vehicle weight rating
  Gross vehicle weight rating (kg)	8.000	14.000	18.000
  Payload approx. (kg)	ca. 5.300	ca. 10.700	ca. 13.500
  Inside dimensions of superstructure
  Platform length, inner (m)	4,56	4,56	5,23
  Platform width, inner (m)	2,13 - 2,20	2,13 - 2,20	2,42
  Additional data
  Lifting power of 1st cylinder stage at 180 bar (kg)	17.100	17.100	25.765
  Tilting angle to the rear approx.	51u00b0	51u00b0	50u00b0
  Tyres
  Tyres	12.5/80-18 (PR)	385/65 R 22,5	385/65 R 22,5
