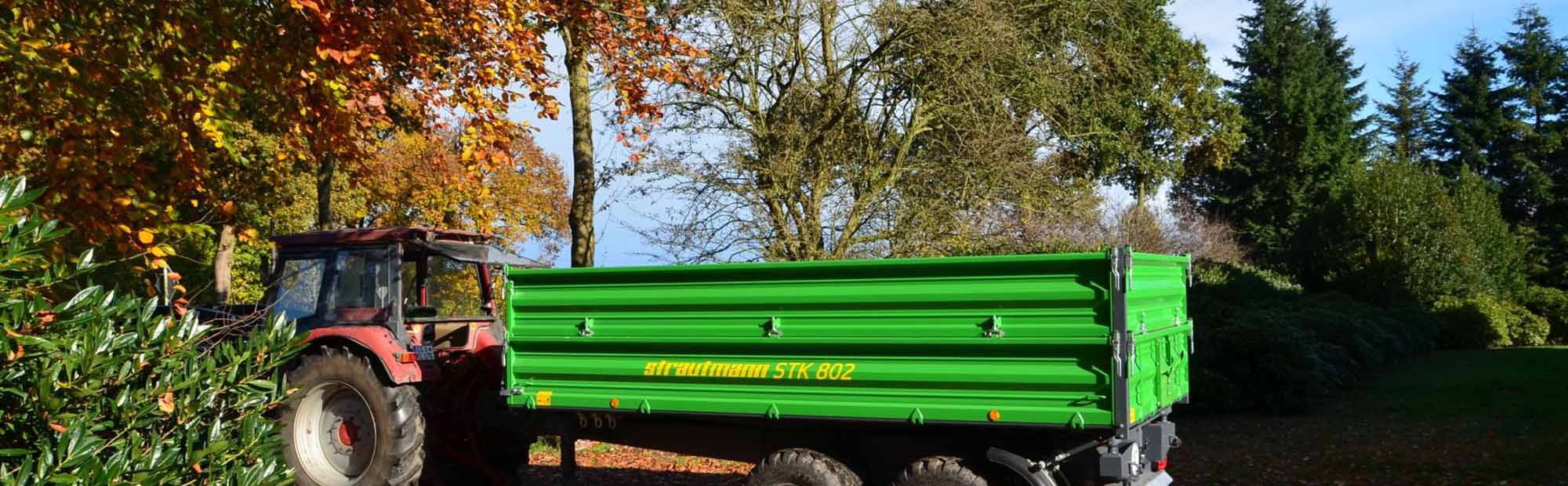

Strautmann Three-way tipping trailer STK

• Description
• Specifications

• Strautmann tandem-axle tipping trailer STK 802-2002

  • Gross vehicle weight rating of 8 t – 20 t
  • Varied body models for any demand
  • Easy handling due to tandem axle
  • Extremely stable during tilting
  • Clean discharge thanks to conical platform (except for STK 2002)

  High quality with variable Body and extensive equipment models - That makes a Strautmann tipping trailer.



  Chassis

  • Solid tandem-chassis for safe driving characteristics
  • Long service life
  • High stability with the wagon tilted
  • Various brake options

• Dimensions
  Length (m)	6,36	6,36	6,36
  Width (m)	2,36	2,36	2,36
  Side panel height (m)	1,11	1,14	1,19
  Model	STK 802	STK 1002	STK 1302
  Gross vehicle weight rating
  Gross vehicle weight rating (kg)	8.000	10.000	13.000
  Payload approx. (kg)	ca. 5.200	ca. 7.200	ca. 10.100
  Inside dimensions of superstructure
  Platform length, inner (m)	4,56	4,56	4,56
  Platform width, inner (m)	2,13 - 2,20	2,13 - 2,20	2,13 - 2,20
  Additional data
  Lifting power of 1st cylinder stage at 180 bar (kg)	17.100	17.100	17.100
  Tilting angle to the rear approx.	51u00b0	51u00b0	51u00b0
  Tyres
  Tyres	12.5/80-18	12.5/80-18	500/50-17
