Strautmann Dump trailer SMK

• Description
• Specifications

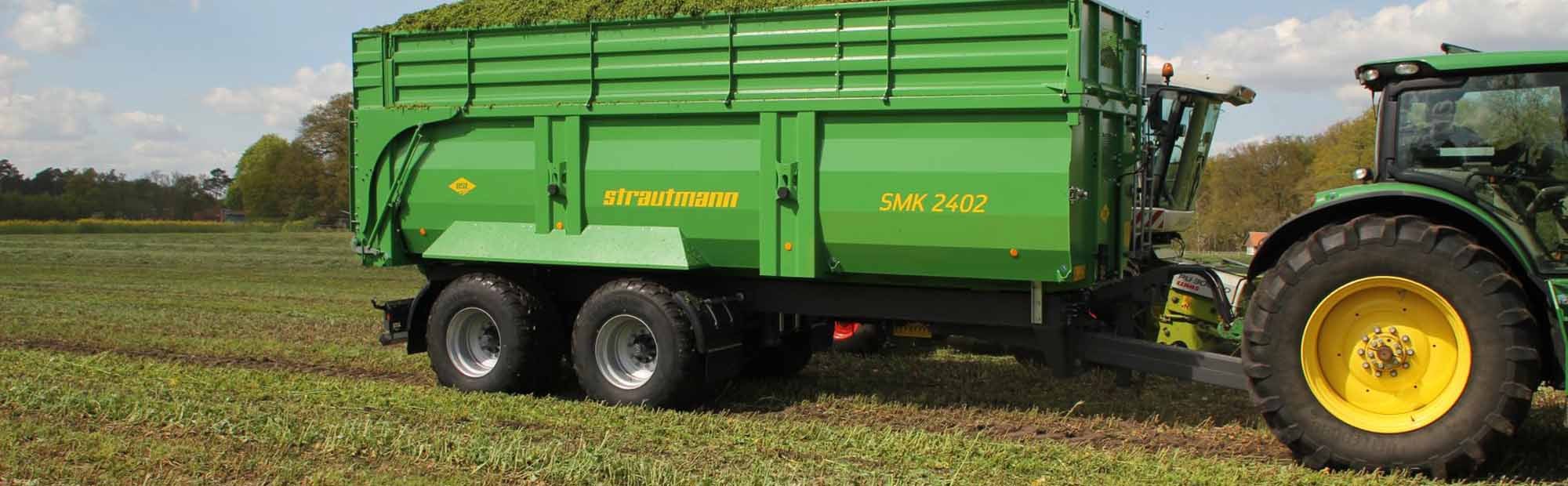

• Strong arguments & intelligent details - The Strautmann dump trailer SMK SMK 1602 - 2402

  The right vehicle for safe and efficient transport.

  • Have been designed for demanding and intensive use

  • Generous volumes can be further increased by attachments (17,2 - 39,7 m³)

  • Best for silage or other bulk materials

  High quality and extensive equipment characterize our dump truck.



  Chassis

  • Solid chassis for safe driving characteristics
  • Long service life
  • High stability with the wagon tilted

• Dimensions
  Length (m)	6,63	7,13	8,21
  Platform height (m)	1,34	1,40	1,55
  Gross vehicle weight rating
  Model	SMK 1602	SMK 2002	SMK 2102
  Gross vehicle weight rating (kg)	16.000	20.000	20.000
  Payload (kg)	ca. 11.000	ca. 14.400	ca. 13.500
  Inside dimensions of superstructure
  Platform length, inside (m)	5,00	5,50	6,25
  Platform width, inside (m)	2,28 - 2,32	2,28 - 2,32	2,28 - 2,32
  Side panel height (m)	1,50	1,50	1,50
  Loading capacity
  Loading capacity (mu00b3)	17,2	19,0	21,6
  with 600 mm extension (mu00b3)	24,7	26,6	30,2
  with 800 mm extension (mu00b3)	-	29,1	33,1
  Additional data
  Lifting power of 1st cylinder stage at 180 bar (kg)	36.200	27.000	33.500
  Tilting angle to the rear approx.	51u00b0	51u00b0	51u00b0
  Oil requirement to the rear approx. (l)	30,8	20,8	31,1
  Tyres
  Tyres	560/60 R 22,5	560/60 R 22,5	710/50 R 26,5
