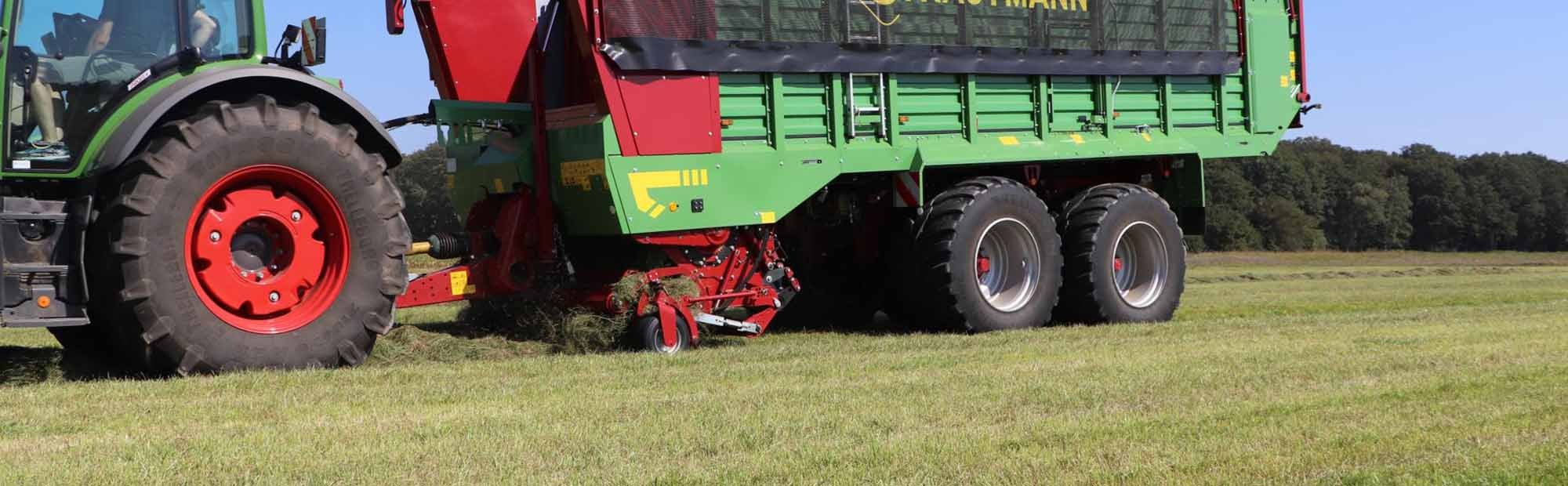

Strautmann Magnon 11
The Magnon series are well-known for their high harvesting performance and excel at the silo by high discharge speeds due to the proven swivelling front panel. Thus, these forage wagon generations cannot be surpassed in terms of throughput rate and power. With its very short cutting length, the Magnon 11 now provides these advantages.
Magnon 11 - no one cuts shorter
The Magnon series are well-known for their high harvesting performance and excel at the silo by high discharge speeds due to the proven swivelling front panel. Thus, these forage wagon generations cannot be surpassed in terms of throughput rate and power. With its very short cutting length, the Magnon 11 now provides these advantages.
- Loading capacity 42 – 52 m³ (according to DIN 11741)
- 22 mm theoretical cutting length
- Exact-Cut cutting unit with 84 turnable knives
- 3000 Nm protection for reliable power transmission under any conditions
Unique - The Flex-Load pick-up
Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines
Continuous-Flow-System
- the system for efficient charging
Due to the interaction of different components, the continuous flow unit ensures excellent performance with little power required. Pick-up, flow roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent silage quality but also in easy towing, thus saving power, money and time. Technical modifications reserved.
<Rotor & cutting unit
Unique fodder quality due to extremely short cutting length
- Standard equipment with 84 knives with two blades each for double the service life
- 22 mm theoretical cutting length
- 37% shorter cutting length with only 20% more power required compared to the Magnon 10 model
- 2.10 m overall rotor width with 8 tine rows
- Helically arranged conveying tines
- Wide swathes are compactly conveyed to the conveyor duct by means of 105 mm wide integral augers
Superstructure & floor
- Solid all-steel superstructure
- Hydraulically swivelled front panel
- Easy access
- Optimum filling degree
- Practical maize plate
Chassis
Different chassis options ensure optimum driving comfort and safety at any time:
- Hydraulic tandem chassis
- Hydraulic tridem chassis
- Passive steering axle
- Mechanical & Electronic forced steering axle
Operation
- Intuitive and comfortable ISOBUS Operation via tractor terminal as standard
- right-hand terminal Smart 570 as an option
- 5.7" coloured screen
- 5,7 Zoll großes Farbdisplay mit Touch-Bedienung
- Optimum control of the charging and discharging process and safe road travel
- Numerous automatic functions ensuring intuitive and comfortable machine operation
Dimensions (with 710/50 R 26,5 tyres) Length (m) 9,90 10,53 11,78 Outside wheel width (m) 2,81 2,81 2,81 Height (m) 3,90 3,90 3,90 Type Magnon 11 - 430 (without beaters / with beaters) Magnon 11 - 470 (without beaters / with beaters) Magnon 11 - 530 (without beaters / with beaters) Cargo space dimensions Height (without extension 90 mm) (m) 2,08 2,08 2,08 Width (m) 2,40 2,40 2,40 Length (m) 7,17 7,80 9,05 Dead weight, standard equipment (kg) 11.500 12.100 14.000 Gross vehicle weight rating Gross vehicle weight rating (kg) 24.000 24.000 34.000 Power required from (KW / HP) 170 / 230 185 / 250 210 / 285 Loading capacity (medium compression) (m³) 74 / 78 82 / 86 93 / 97 Loading capacity according to DIN 11741 (m³) 42 / 40 46 / 44 52 / 50 Additional data Conveying unit type Rotor Rotor Rotor Picking-up width of pick-up (m) 2,25 2,25 2,25 Number of knives (pcs) 84 84 84 Theoretical cutting length (mm) 22 22 22
