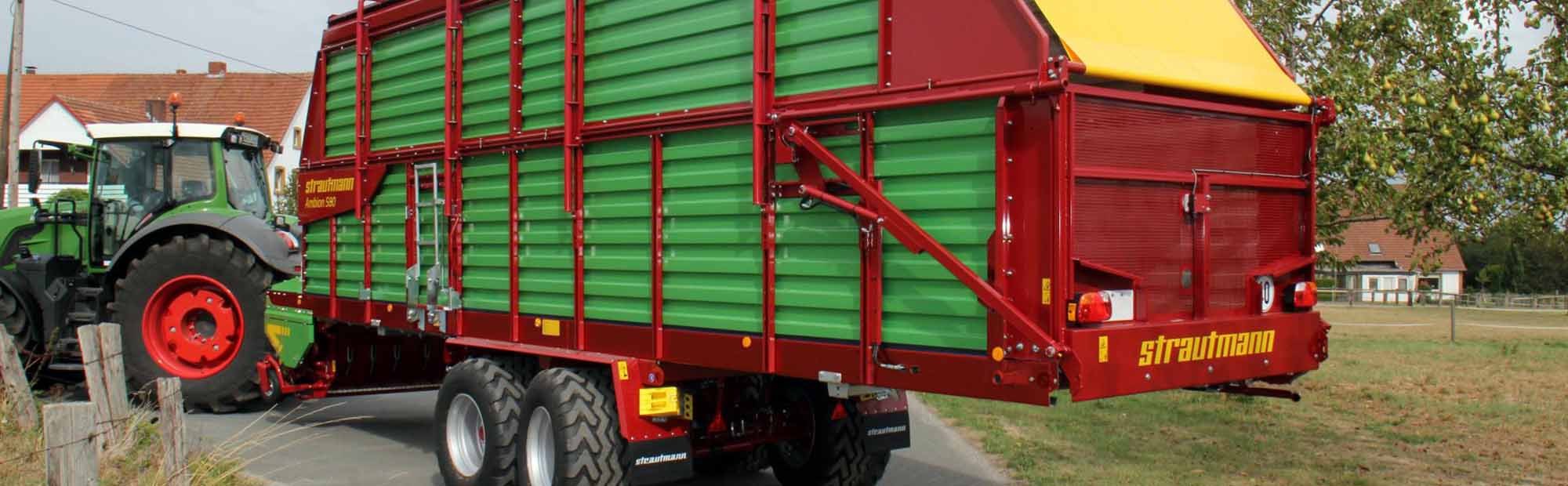

Strautmann Ambion

Ambion - The hay & straw expert!

High harvesting performance and gentle charging are the special features that distinguish the Strautmann forage wagon Ambion. The large-sized hay superstructures ensure maximum transport capacity.

• Ambion 250 - 500
• Loading capacity 24 - 49 m³
• Tine bars

Pick-up variants

The right solution for any condition

• Cam-controlled steel-tine pick-up 1.80 m in width as standard
• Flex-Load pick-up 1.80 m in width as an option
• Flex-Load pick-up 2.25 m in width as an option

Flex-Load pick-up (optional)

Flexible charging - Saving time and effort

Minimum wear and optimum adaptation to the ground due to the innovative Flex-Load pick-up equipped with plastic tines

2,25 m Flex-Load Pick-up (optional)

The pick-up for highest requirements

• Reliable picking-up of material from large hay swathes
• Enormous pendulum radius for optimum adaptation to the ground in hilly terrain
• Material merging via 300 mm tamping augers
• Hydraulic pick-up drive

Gentle charging

- With the Ambion tine-bar assembly

• 4 or 5 tine bars
• Optimal for hay & straw
• High harvesting performance

Tine bars & cutting unit

- Safe charging, precise cutting

• tine-bar assembly with 4 or 5 tine bars
• Standard equipment with 6 knives
• Additional knives are hydraulically extended

Superstructure

Ambion 250-360: Standard with Silage superstructure , optional hay superstructure

Ambion 440 and 500: Standard with hay superstructure



Silage superstructure

• Solid superstructure for use in grass harvesting

Hay superstructure

• High superstructure for large loading capacity
• Robust design with wide guide plates for
• optimum charging and transport without any losses

Transport floor

• Even feed due to 10 mm strong round steel chains with a breaking load of 13 t each
• Handy profile strips with U-shaped cross-section screwed to the chains



Chassis

Boogie tandem assembly

• Safe and comfortable driving
• High degree of stability even during cornering
• Large pendulum radius

Steering axle

• Optional equipment
• Protects the sward and reduces tyre wear

Operation

Several operating options enable an adapted and  easy operation

• E-Control
• Smart 570

• Dimensions
  Outside wheel width (chassis 10t, tyres 500/50-17)	[m]	2,60
  (chassis 13t, tyres 620/40 R 22,5)	[m]	2,72
  (chassis 16t, tyres 710/40 R 22,5)	[m]	2,81
  	Ambion 290	Ambion 360	Ambion 440 (extension low/high)
  Height (chassis 10t, tyres 500/50-17)	[m]	3,58	3,81 / 3,99
  (chassis 13t, tyres 620/40 R 22,5)	[m]	3,66	3,94 / 4,12
  (Height with chassis 16t, tyres 710/40 R 22,5)	[m]	3,76	4,00 / 4,18
  Cargo space dimensions
  Heigth ([m])	2,22	2,42 / 2,60
  Width ([m])	2,10
  Length ([m])	6,08	7,48	8,02
  Loading capacity according to DIN 11741 ([mu00b3])	28	35	39,5 / 42,0
  Loading capacity, medium compression ([mu00b3])	47,6	59,5	67,2 / 71,4
  Weight
  Dead weight standard ([kg])	5.800	6.100	6.400
  Gross vehicle weight rating standard ([kg])	12.000
  Gross vehicle weight rating optional ([kg])	15.000
  Power required
  Power required ([KW / HP])	51 / 70	59 / 80	66 / 90
  Additional data
  Conveying unit type	Tine bar
  Number of knives ([pcs])	6 / 19 / 37
  Picking-up width of pick-up ([m])	1,80
  Theoretical cutting length ([mm])	240 / 80 / 40
