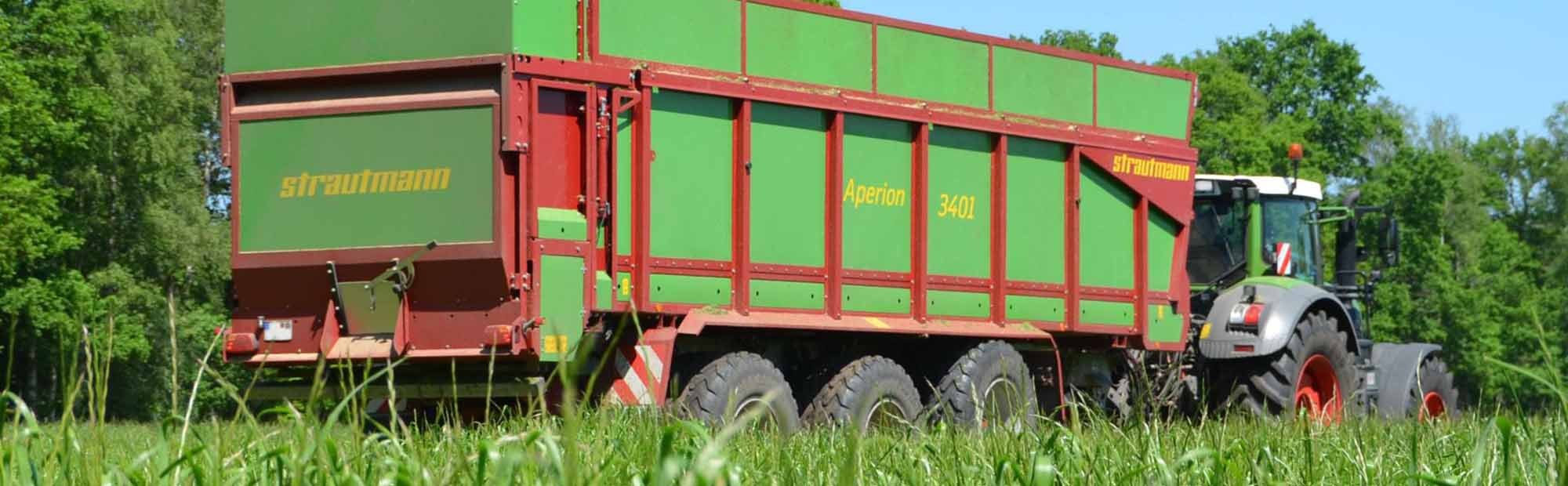

Strautmann Aperion

The Aperion conveyor belt wagon complements the Strautmann range in the field of bulk goods transport. In addition to tippers and forage transport wagons, the conveyor belt wagon offers a multifunctional solution for professional transport.

Enquire now

  • Aperion

    derived from the Greek „apeiros“ for infinite – infinite like the conveyor on the Strautmann conveyor belt wagon and infinite like the variety of possibilities the Aperion offers!

    • Loading capacity 28-52 m²
    • For an infinite variety of possibilities
    • Can be used for all agricultural bulk and piece goods
    • Efficient transport with a total weight of up to 34 tonnes

    Continuous conveyor

    The Aperion enables all-season use from spring to winter. Wood chips, chopped silage or grain can be as efficiently transported as rape, root crops or even packaged goods, big bags or pallets
    – the variety of possibilities is almost infinite!

    • Robust transport conveyor belt
    • Reliable drive
    • Always clean
    • Optimum support


    • Wide-opening tailgate
    • Diverse extension concept
    • Covering system for any requirements


    Stable and safe on all roads

    • Hydraulic tandem chassis
    • Hydraulic tridem chassis


    Several operating options enable an adapted and easy operation of the Aperion

    • tractor direct connection
    • Electro-hydraulic operation via E-Control

  • Dimensions (tyres 710/50 R 26,5)
    Length (m)9,7511,55
    Outside wheel width (m)2,812,81
    Height (m)3,953,95
    ModelAperion 2401Aperion 3401
    Dead weight (kg)820010200
    Gross vehicle weight rating
    with top linkage (kg)--
    with bottom linkage (kg)2400034000
    Inside dimensions of superstructure
    Length (m)8,109,90
    Width (m)2,342,34
    Heigth (m)1,51,5
    Heigth with extension (m)2,202,20
    Loading capacity
    Loading capacity (mu00b3)28,0035,00
    Loading capacity with extension (mu00b3)42,0052,00
