SPREADERS

Strautmann MS-Spreader

With the screwed all-steel trough now being powder-coated, the MS spreader models are a perfect complement to the Strautmann spreader portfolio.

Enquire now

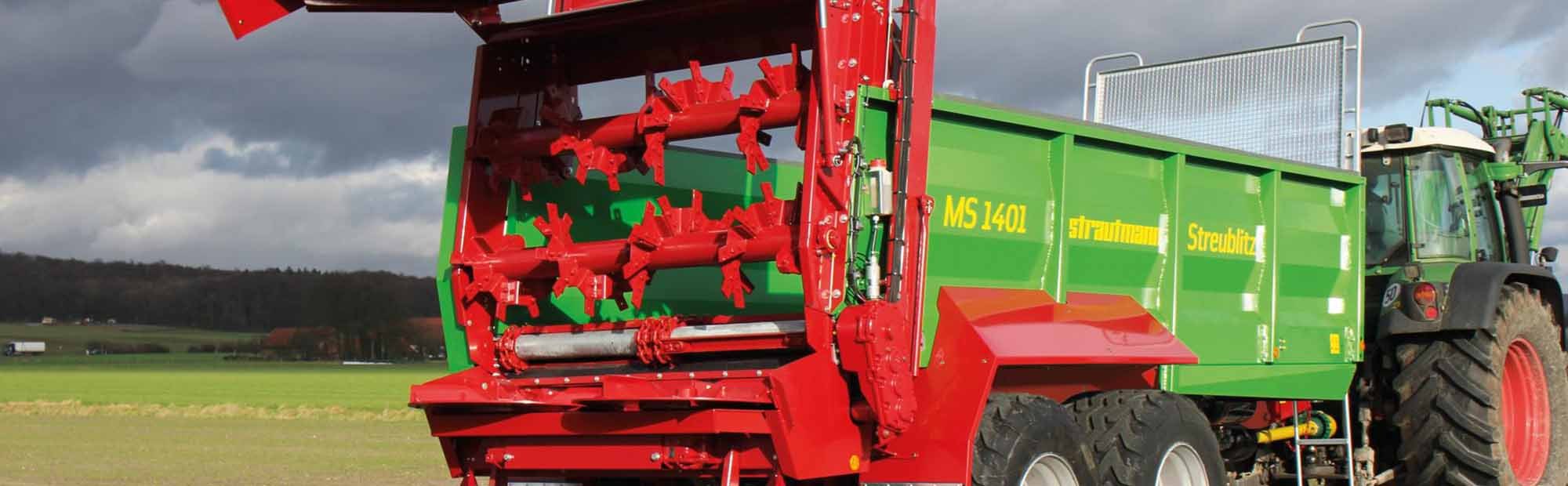

MS-Spreader – The all-rounder

With the screwed all-steel trough now being powder-coated, the MS spreader models are a perfect complement to the Strautmann spreader portfolio.

  • MS 801 - 1401
  • 8 - 15 t GVWR
  • 2 spreading unit options
  • Safe in use and robust

Spreading units

4-beater spreading unit

  • Standard for all MS spreader models
  • Spreading widths between 6-8 m due to fan-shaped spreading tines

2-disc wide-angle spreading unit

  • Optional extra
  • Spreading beaters crush the spreading material and feed it to the discs
  • Due to adjustable throwshovels, spreading widths of up to 21 m are reached

Superstructure

Spreader trough

  • All-steel trough
  • KTL-powder-coated
  • 250 mm compost extension available as an optional extra
  • Easy increase of volume for light spreading materials

Robust transport floor

MS 801/901:

  • Standard wooden floor
  • 4 x 10 mm strong transport floor chain
  • Optional plastic floor

MS 1201/1401:

  • Standard plastic floor
  • 4 x 13 mm strong transport floor chains
  • Roof profiles on the transport floor strips ensure a clean transport of fine-grained spreading materials

Chassis

Single axle

  • Favourable price-performance ratio
  • Easy towing, in particular with large tyres
  • High load

Tandem axle

  • Reduced ground pressure in combination with wide tyres
  • Protection of ground
  • Robust 4-spring chassis with comfortable driving characteristics

Operating options

Direct connection

  • Standard
  • All functions are switched via the tractor control valve
  • Flexibly adjustable by means of telescopic bracket

E-control light

  • Operation of hydraulic functions via direct tractor connection
  • Adjustment of transport floor speed via rotary potentiometer
  • Speed monitoring with transport floor stop
  • Switching on and off of work lights

E - Control

  • Comfortable operation of hydraulic functions via toggle switches
  • Adjustment of transport floor speed via rotary potentiometer
  • Speed monitoring with transport floor stop

Transported loads counter

  • As a supplement to direct connection and easy-to-use control
  • Transported loads  and working hours are counted (erasable)
