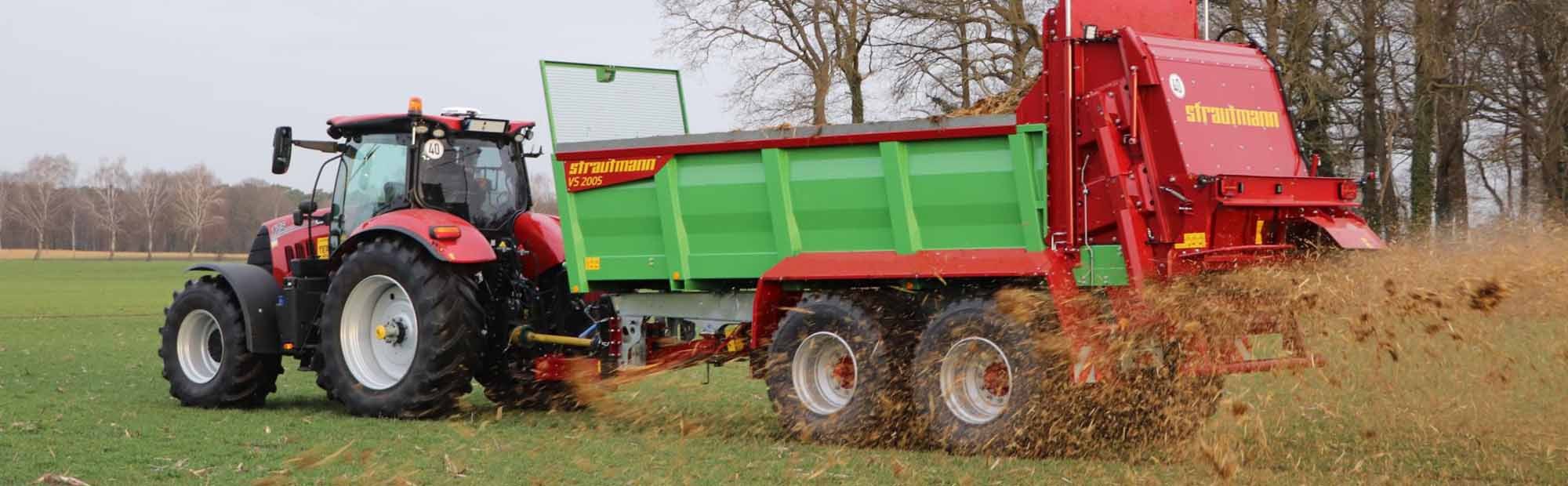

Strautmann VS-Spreader

Long-lasting precision due to robust spreading unit with Hardox wearing parts.

See the VS-spreader in action!

Enquire now

  • VS-Spreader - versatile and strong

    • VS 1205 - 2005
    • Gross vehicle weight rating 12 - 22 t
    • Long-lasting precision due to robust spreading unit with Hardox wearing parts
    • High power due to a spreading unit clearance of 1.55 m

    Universal spreading unit

    • Spreading width of up to 24 m
    • Accurate lateral distribution
    • Exact spreading pattern
    • Maximum throughput rate


    Robust all-steel trough

    • Side panels completely welded
    • Canted side panels & large-sized side posts

    Transport floor

    • 14 mm strong round steel chains with a breaking load of 25 t each
    • Clean motion without any problems even in case of sticky spreading materials due to roof profile on every third transport floor strip
    • Driven by large-sized gearbox with hydraulic motor

    Compost extensions

    • 300 mm in height
    • Inclined outwards
    • Increase the loading capacity
    • Protect against loss of loaded material and soiling


    Single axle

    • On the VS 1205 model
    • Large tyres possible

    Tandem boogie axle

    • On the VS 1605 - 2005 models
    • Good driving characteristics
    • Optimum adaptation to ground
    • Available with passive steering

    Lift axle on tandem assembly (optional)

    • No negative tongue loads – even when the spreader is half-empty
    • Optimum transmission and utilisation of the tractor‘s tractive force
    • Minimised tyre wear


    • E-Control light
    • E-Control
    • ISOBUS (Smart 570)
    • ISOBUS (Touch 800)
    • Weighing system only available for the VS 2005

    Precision Farming

    A data and GPS-supported operation, enables the spreading material can be spread exactly where it is needed in the appropriate quantities in order to achieve the best possible yield. Only available for the VS 2005.

  • Dimensions
    Height (m)3,543,473,47
    Outer wheel width (m)2,752,662,76
    Loading height (m)2,642,572,57
    TypeVS 1205u00a0with tyres 710/50 R 26,5VS 1605 with tyres 710/40 R 22,5VS 1805u00a0withu00a0tyres 710/40 R 22,5
    Length (2-disc spreading unit) (m)8,148,148,14
    Tare weight
    with 2-disc spreading unit from (kg)6.5007.3007.400
    Gross vehicle weight rating
    with high drawbar (kg)12.00016.00018.000
    with low drawbar (kg)13.00017.00019.000
    Power requirement (kW / HP)88 / 12088 / 12088 / 120
    Container dimensions (inside)
    Length (m)5,535,535,53
    Length up to slurry door (m)4,854,854,85
    Width (m)1,931,931,93
    Height of platform panels (m)1,061,061,06
    Volume (mu00b3)16,5016,5016,50
    Volume up to slurry door (mu00b3)14,5014,5014,50
    Spreading unit
    Spreader unit channel (2-discs) (m)1,551,551,55
    Slurry door channel (m)1,551,551,55
