Strautmann CS-Spreader

The compact CS spreader is particularly suitable for businesses with in-house mechanisation and ensures effective discharge of manure.

Enquire now

  • CS-Spreader – Compact and flexible

    The compact CS spreader is particularly suitable for businesses with in-house mechanisation and ensures effective discharge of manure.

    • CS 75 - 95
    • 7,5 - 9,5 m³ Loading capacity
    • Flexibility due to double use as a transport trailer
    • Easy operation

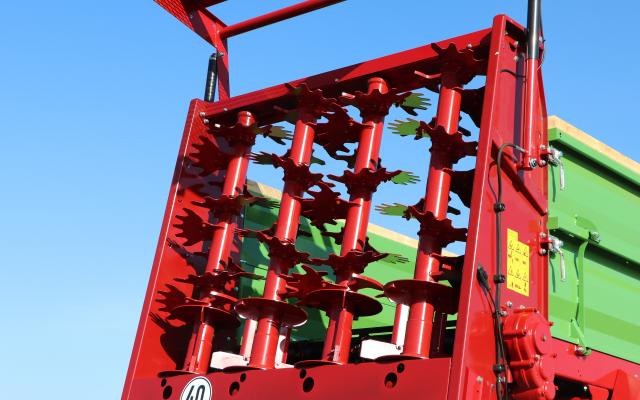

    Spreading unit

    4-beater spreading unit

    • Four upright spreading beaters for operating widths between 6-8 m
    • Fan-shaped spreading tines ensure even crushing of the spreading material
    • Powered via low-maintenance gearboxes

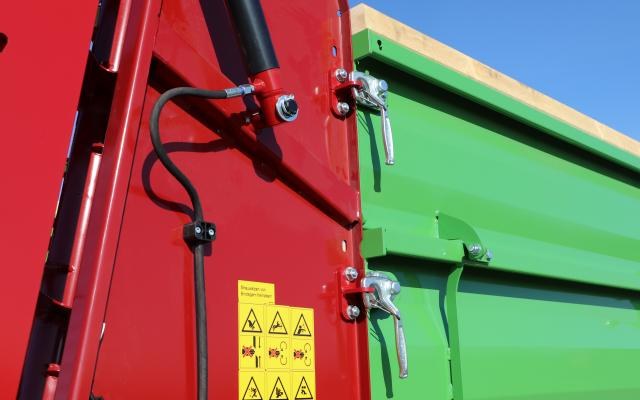

    Superstructure

    Side panel and extensions

    • Folding to reduce the charging height

    • Flexibility due to double use as a transport trailer

    • 400 mm high extension panels optionally available to increase the loading capacity

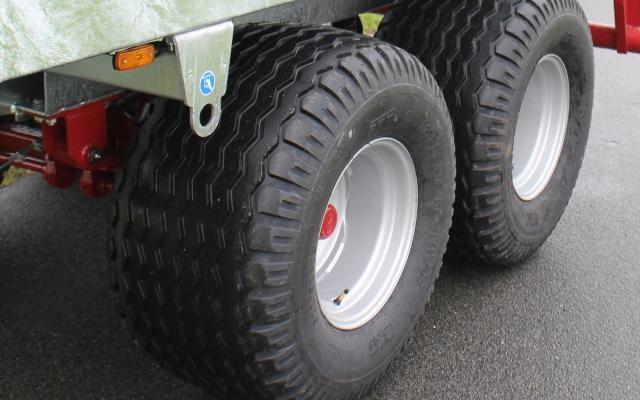

    Chassis

    • Single axle or spring-loaded tandem chassis (CS 95) for maximum driving comfort
    • Various tyre options

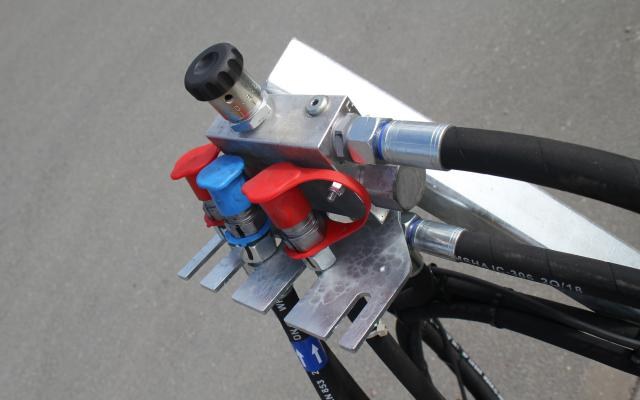

    Operation

    • Actuation of all functions via direct tractor connection
    • Adjustment of transport floor speed via 3-way current regulation valve
    • Transport floor reverse by reserving the oil flow direction

  • Dimensions
    Length (m)6,166,96
    Height (m)2,842,88
    Outer wheel width (m)2,172,17
    TypeCS 75 with tyres 520/50 R 17CS 95 with tyres 520/50 R 17
    Loading height (m)1,751,79
    Tare weight from (kg)2.0002.300
    Gross vehicle weight rating (kg)5.7008.000
    Power requirement (kW / HP)26 / 3537 / 50
    Container dimensions
    Length (m)3,704,60
    Width (m)1,801,80
    Height of platform panels (m)0,500,50
    Volume (m³)7,59,5
    Spreader unit channel (m)1,151,15
