FEED MIXERS

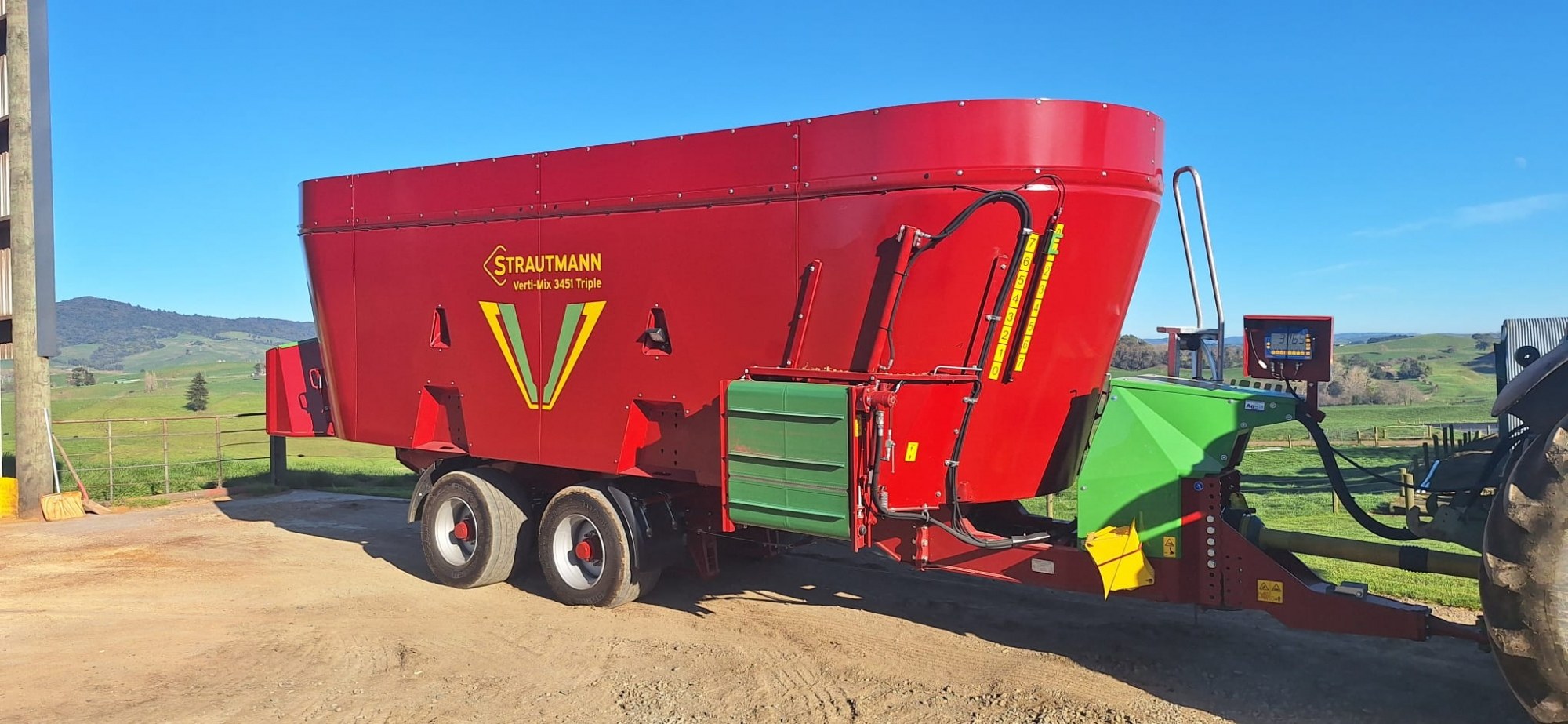

Strautmann Verti-Mix Triple

Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance  angular gear ensures a long service life even under challenging conditions.

Enquire now

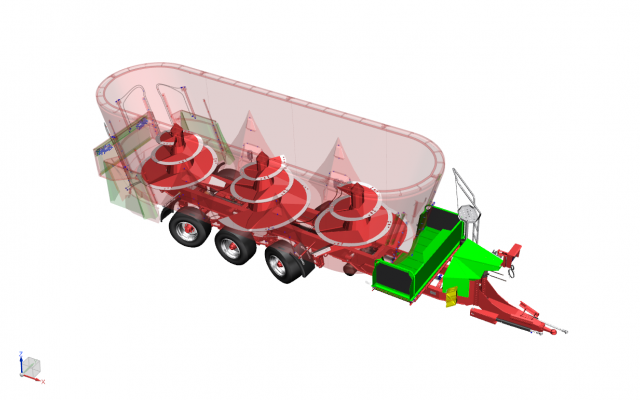

  • Verti-Mix Triple - 3 IMS-augers for better mixing

    • Usable mixing capacity of 28,5 m³ - 45,0 m³
    • Capacity expandable by 180 mm or 360 mm attachments
    • All components have been designed for maximum capacity
    • 140 - 320 cows per container filling

    The IMS mixing auger – Variability and strength for any purpose

    Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance  angular gear ensures a long service life even under challenging conditions.

    • Low power requirement
    • Optimum fodder structure
    • Homogeneous mixing
    • Energy-saving short mixing time

     You want your business to grow – Your Verti-Mix adapts to your growing needs

    The patented container embossing at the top container edge provides the Strautmann mixing container additional strength and stability. It serves as the basis for variable container extensions (0 mm - 180 mm - 360 mm) enabling you to adapt the capacity of the mixing container to your operational requirements.

    • Flexible customised extension of the capacity
    • Highest stability of the container due to embossing
    • Design of all components for maximum possible container capacity

    Discharge options - adapted to your enterprise

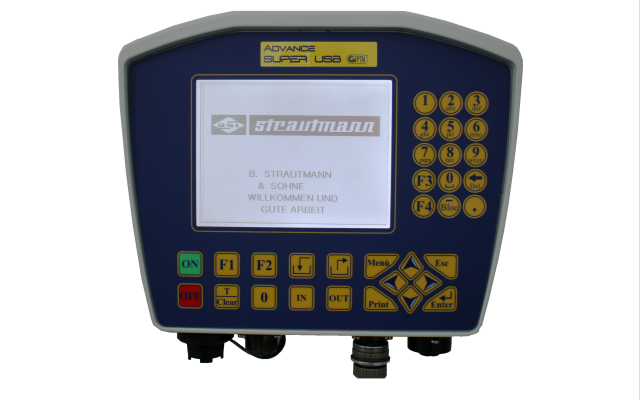

    Operating and weighing - Take your choice

    Strautmann responds to individual customer demands also with regard to the kind of operating device. The selection of the operating option depends on the user‘s requirements.

  • TypeVerti-Mix 3451 Triple (28,5 / 31,5 / 34,5 [m³])Verti-Mix 4501 Triple (38,0 / 41,5 / 45,0 [m³])
    Dimensions
    Length (m)9,439,94
    Width with crossover conveyor (m)2,282,42
    Width with one-sided discharge (m)2,382,52
    Width with two-sided discharge (m)2,482,62
    Outside wheel width (m)2,172,36
    Attachments (m)- / 0,18 / 0,36- / 0,18 / 0,36
    Length with front crossover conveyor (m)10,1510,66
    Discharge height, crossover conveyor (m)1,101,05
    Distance Centre of drawbar lug -Centre of axle (m)5,866,00
    Distance Centre of drawbar lug - Centre ofaxle with front crossover conveyor (m)6,596,72
    Dead weight
    with two-sided discharge from (kg)10.900 / 11.000 / 11.10013.300 / 13.400 / 13.500
    with crossover conveyor from (kg)11.200 / 11.300 / 11.40013.600 / 13.700 / 13.800
    Gross vehicle weight rating
    Admissible tongue load (kg)20002000
    Axle load (kg)90008000
    Technically permitted total weight 15 km/h tandem axle [kg] (kg)26000-
    Technically permitted total weight 15 km/h tridem axle [kg] (kg)3800038000
    Permitted total weight 25 km/h (StVZO) tandem axle (kg)20000-
    Permitted total weight 25 km/h (StVZO) tridem axle (kg)2600026000
    Power requirement
    with 2-speed gearbox 12,8/23 rpm (HP)-155 / 164 / 197
    with 2-speed gearbox 14,4/26 rpm (HP)120 / 128 / 136-
    with 2-speed gearbox 16,7/30 rpm (HP)148 / 157 / 167-
    Axle
    Wheel track (mm)17301800
    Wheel base (mm)13601360
    Container
    Thickness of container wall (mm)88
    Bottom plate (mm)2020
    Length of container inside dimension incl. overflow ring (m)7,488,09
    Height of vehicle (tandem axle) depending on size of wheels
    435/50 R 19.5, wheel track 1930mm (m)2,94 / 3,12 / 3,30-
    235/75 R 17,5 twin tyres (m)2,82 / 3,00 / 3,18-
    455/45 R 22,5 (m)3,00 / 3,18 / 3,36-
    Height of vehicle (tridem axle) depending on size of wheels
    235/75 R 17,5 Twin tyres, wheel track 1720mm (m)2,82 / 3,00 / 3,183,12 / 3,30 / 3,48
    435/50 R 19,5 (m)2,94 / 3,12 / 3,303,24 / 3,42 / 3,60
    455,45 R 22,5, Wheel track 1720mm (m)3,00 / 3,18 / 3,363,30 / 3,48 / 3,66
