UNIQUELY VERSATILE

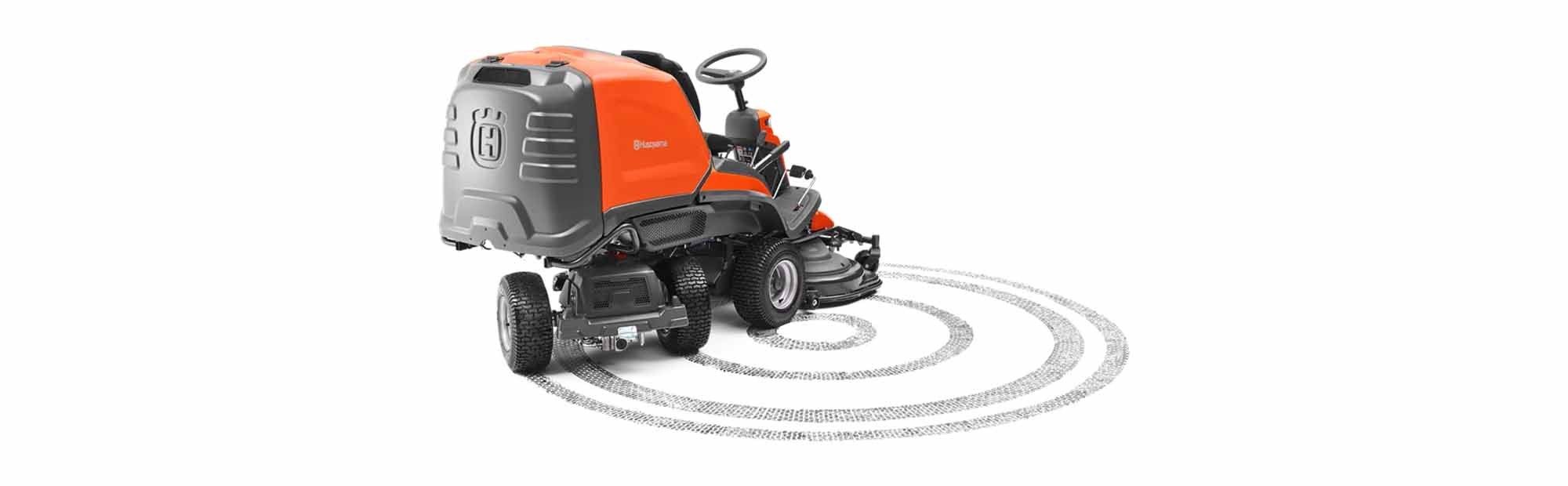

The RC 320Ts AWD Rider offers durable effectiveness, versatility and ease of use though innovative design. Its unique, non-clogging collection system feeds clippings straight from the front-mounted cutting deck to the 300 l bag. Automatic compaction increases run time between emptying, so you get more done. Articulated powered steering allows easy tight turns for superior manoeuvrability. All Wheel Drive means superior power and traction in all conditions. Cutting deck servicing and cleaning is tool-free, thanks to the unique 90° service position. Unbeaten area coverage and huge collection capacity make this a truly worthwhile investment for larger gardens.
FEATURES
- All-Wheel-Drive (AWD)
- ACTech
- Turn key start
- Empty collector from seat
- Non-collecting mode
- Articulated steering
- Power steering
- Pedal-operated hydrostatic transmission
- Easy-access service points
- Easy-access controls
- Front-mounted cutting deck
- Service position
- Four large wheels
- Automatic blade engagement
- Pivoting rear axle
- Comfortable driver's position
- Engine behind driver
- Floating cutting deck
- Hour meter with service minder
- LED headlights
- 12V socket outlet
- Easy-access cutting height lever
- External fuel cap
- Pivoting support wheels
- Transparent fuel tank
- Attachment frame
- All-Wheel-Drive (AWD)
ENGINE Power/fuel type Gasoline Net power at preset rpm Energy 12.6 kW Motor/engine manufacturer Briggs & Stratton Engine name Endurance Series Cylinder displacement 656 cm³ Cylinders 2 Engine cooling Air Engine lubrication type Full pressure Oil filter Yes EMISSION Exhaust emissions (CO2 EU V) 830 g/kWh BATTERY Battery capacity 5.5 Ah Battery type Li-Ion Battery pack weight 1.1 kg Battery manufacturer BMZ CUTTING DECK Uncut circle 60 cm Cutting width, min 103 cm Cutting width, max 112 cm Cutting height min 25 mm Cutting height max 75 mm Blade engagement Automatic Collector volume 300 l DIMENSIONS Tyre dimensions, front 16x6,5-8 Tyre dimensions, rear 16x6,5-8 Wheelbase 90.3 mm Ground clearance 90 mm Base machine, length 208.9 mm Base machine, width 103 cm Base machine, height 128.4 cm Weight (excl. cutting equipment) 328 kg DRIVE SYSTEM PTO (Power Take Off) Hydrostatic Transmission manufacturer, rear Tuff Torq Drive method Dual pedal-operation Speed forward max 8 km/h Speed reverse max 4.3 mph Speed reverse max 7 km/h Transmission manufacturer, front Tuff Torq Transmission model, front KTM13T Transmission model, rear K664M EQUIPMENT Seat suspension Yes Hour meter type Digital Seat material PU Seat back height High Foldable seat Yes Steering wheel type Comfort Parking brake, type Disc VIBRATION Vibration level steering wheel 2.6 m/s² Vibration level seat 0.7 m/s² SOUND AND NOISE Sound pressure level at operators ear 85 dB(A) Sound power level, guaranteed 100 dB(A) Sound power level, measured 99 dB(A)
