Professional Ride-On

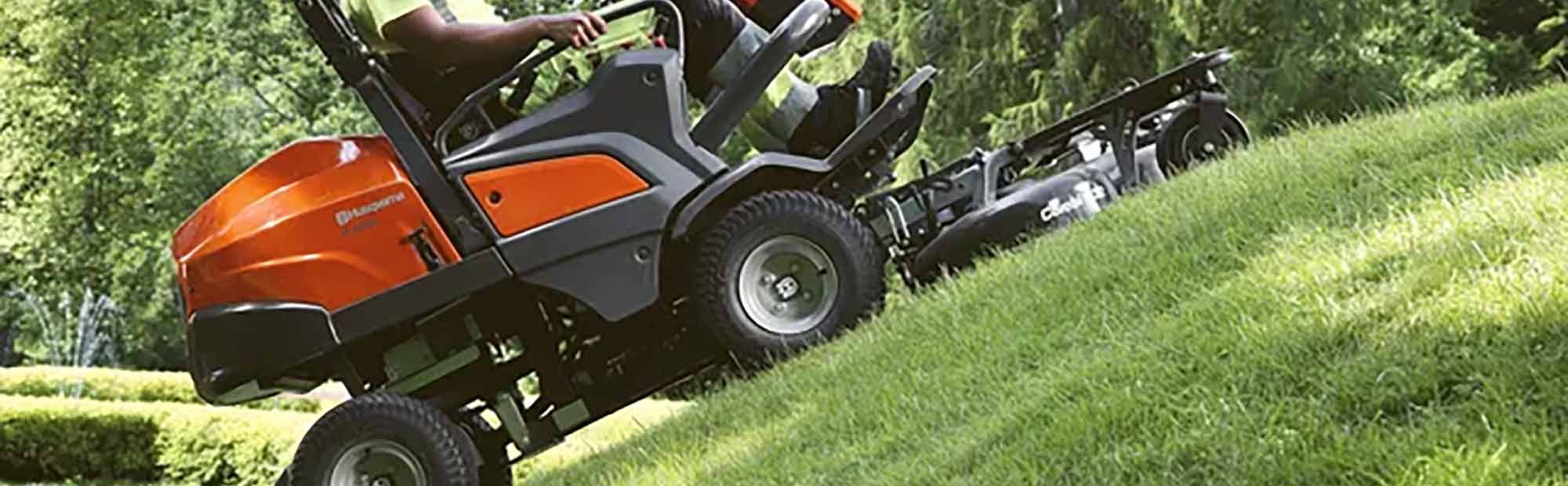

High-capacity diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket and broom give increased productivity all-year round. The P525DX can be fitted with either a 132 or 155 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.
FEATURES
- Articulated steering
- Trimming ability
- Mowing accessibility
- Compact design
- Commercial grade transmission
- All-Wheel Drive (AWD)
- Versatile usage
- Cabin
- All-Wheel-Drive (AWD)
- Shaft PTO
- Quick coupling
- Kubota diesel engine
- Ergonomic operation
- Hydraulic power steering
- Easy-access controls
- Easy-access service points
- Greasable mandrels
- Off-set cutting deck
- Service position
- Durable ladder frame
- Cast iron rear wagon
- Heavy-duty deck design
- Four large wheels
- Ready for Combi deck
- Articulated steering
ENGINE Power/fuel type Gasoline Net power at preset rpm Energy 17.8 kW Motor/engine manufacturer Kubota Engine name D1105 Cylinder displacement 1,123 cm³ Cylinders 3 Engine cooling Liquid Engine lubrication type Pressure with Oilfilter Oil filter Yes EMISSION Exhaust emissions (CO2 EU V) 1,018 g/kWh BATTERY Battery capacity 62 Ah Battery type Lead-Acid Battery pack weight 14 kg Battery manufacturer Exide CUTTING DECK Uncut circle 58 cm Cutting width, min 132 cm Cutting width, max 155 cm Cutting height min 30 mm Cutting height max 112 mm Blade engagement Electric clutch DIMENSIONS Tyre dimensions, front 20x10-10 Tyre dimensions, rear 20x10-10 Wheelbase 106 cm Ground clearance 140 mm Base machine, length 207.8 cm Base machine, width 115.3 cm Base machine, height 133 cm Gross weight towed 350 kg Weight (excl. cutting equipment) 684 kg DRIVE SYSTEM Transmission type Hydrostatic Transmission manufacturer, rear Kanzaki Drive method Dual pedal-operation Speed forward max 19 km/h Speed reverse max 9.3 mph Speed reverse max 15 km/h Transmission manufacturer, front Kanzaki Transmission model, front KTM 23LC Transmission model, rear KTM 23SC EQUIPMENT Seat suspension Yes Seat type Full suspension, arm rests Hour meter type Digital with pre-programmed service intervals Seat material Vinyl Seat back height High Foldable seat Yes Steering wheel type Professional Parking brake, type Disc
