Strautmann Silo Block Cutter HQ plus

• Description
• Specifications

• Easy and quick

  Cutting of silage without any interruption by means of the slim cutting arm

  Full movement of knives at any time

  Thanks to hydraulic travel switching of knife drive

  Optimum utilisation

  of the tractor width due to wide cutting Frame (loading capacity of 1,75-2,80 m²)

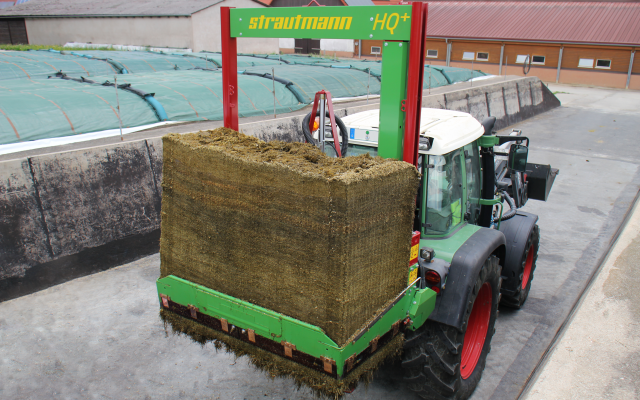

  Extremely fast and clean cut by means of the Strautmann silo block cutter.

  • Robust, reliable and well performing
  • Clean picking-up up to the silo wall
  • Close hitching-up to the tractor ensures centre of gravity being in a balanced position
  • Fast removal at the silo and thus less reheating

  → The fodder quality is maintained

  Cutting Frame

  • Minimum cutting resistance due to slim cutting arm
  • Slim design of cutting arm due to drive via 2 doubleacting hydraulic cylinders at the rear
  • Long service life due to proven knife steel

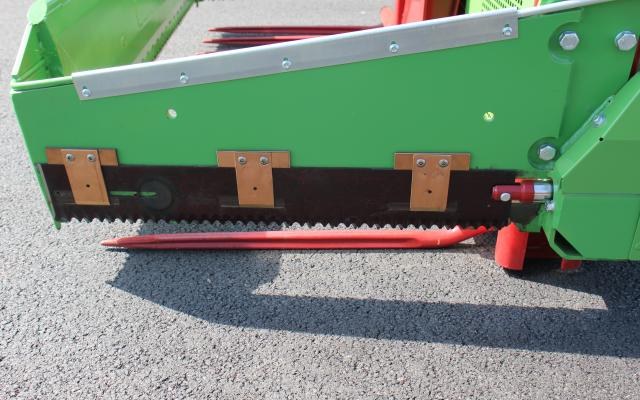

  Knives

  • Possible equipment with lifting frame for particularly high picking-up heights
  • Picking-up heights from 2,90-3,60 m
  • Effective utilisation of the tractor‘s lifting power due to small distance to the frame

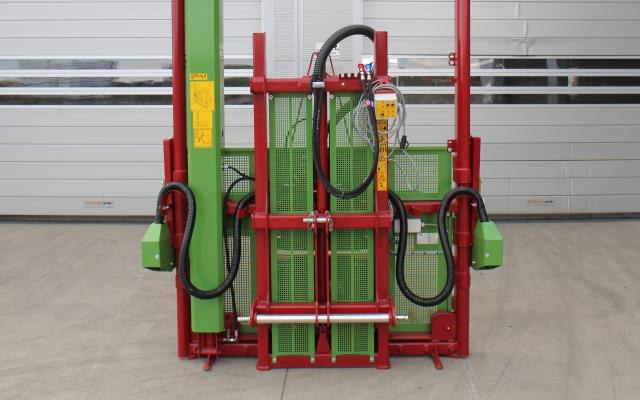

  Lifting frame

  • With optional Lifting frame
  • Proven forced feed for extremely hard silage

  → Independent of the tractor‘s hydraulic system, an internal hydraulic system presses the cutting arm through the silage with up to 220 bar.

  • Furthermore, it is equipped with an automatic feed Control:

  → Self-adaptation to silage density

  → Maximum picking-up Performance at any time

• Type	HQ plus 1750	HQ plus 2200	HQ plus 2500
  Dimensions
  Depth (m)	1,20	1,20	1,20
  Width (m)	2,00
  Height (m)	2,05	2,35	2,55
  Max. picking-up height of basic machine (m)	1,16	1,46	1,66
  Max. picking-up height with lifting frame 1,25 m (m)	2,40	2,70	2,90

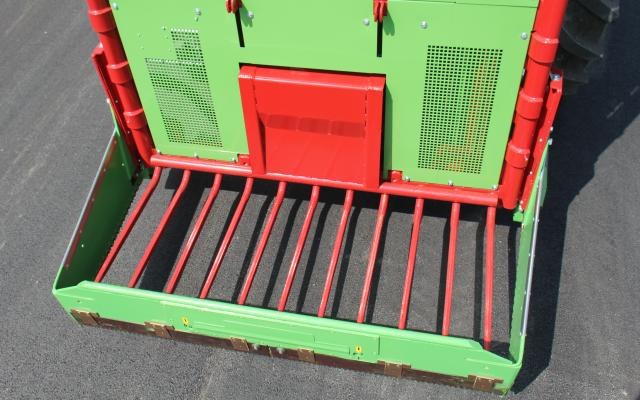

  Number of tines ( pcs.)	11
  Dead weight
  Basic machine from (kg)	565	590	620
  with lifting frame (kg)	740	765	795
  Loading capacity
  Loading capacity (m³)	1,75	2,20	2,50
  Bale size
  Depth (m)	0,83
  Width (m)	1,80
  Height (m)	1,16	1,46	1,66
