Strautmann Block Distribution Wagon - BVW

• Description
• Specifications

• Block Distribution wagon - simple & robust

  The Strautmann block distribution wagons are an ideal complement for the efficient procedure of picking-up silage by means of silo block cutters.

  • Effective beater for homogeneous fodder discharge

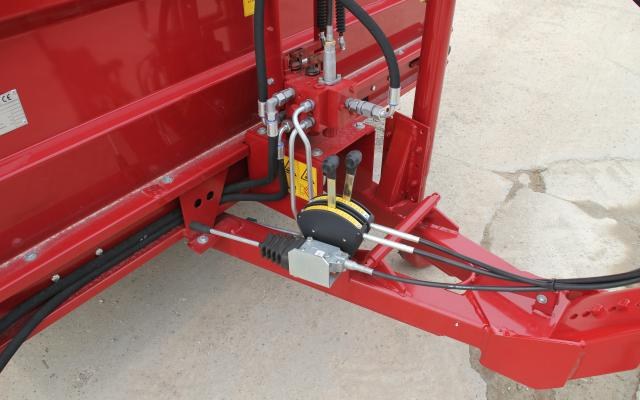

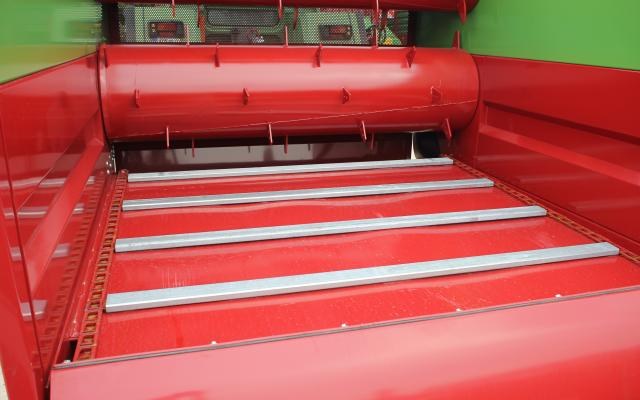

  • Robust transport Floor - Infinitely adjustable via Bowden cable
  • 2,30 m width
  • 2,85 m³ volume

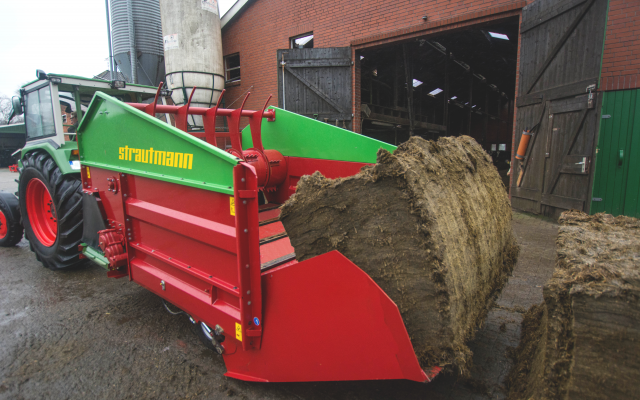

  Hydraulic loading shovel

  • Silo blocks are easily tipped onto the transport floor by means of the loading shovel
  • Picking-up of bulk material also possible

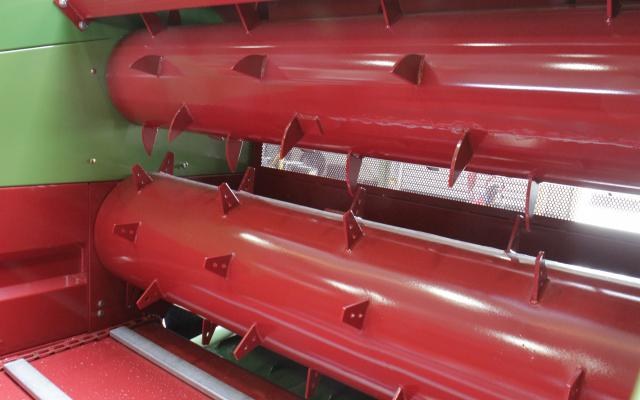

  Effective beater

  • Equipped with aggressive ripping tines
  • Fodder is cleanly milled off the block

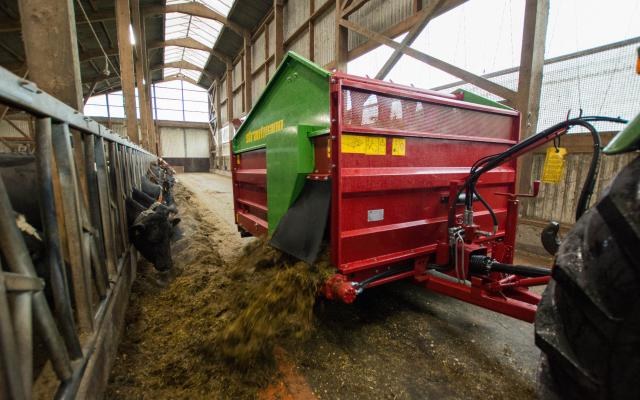

  Comfortable fodder discharge

  • Transport into the stable without any losses
  • Block is undone in the BVW
  • Homogeneous discharge via the crossover conveyor

  Comfortable fodder discharge

  • Transport into the stable without any losses
  • Block is undone in the BVW
  • Homogeneous discharge via the crossover conveyor

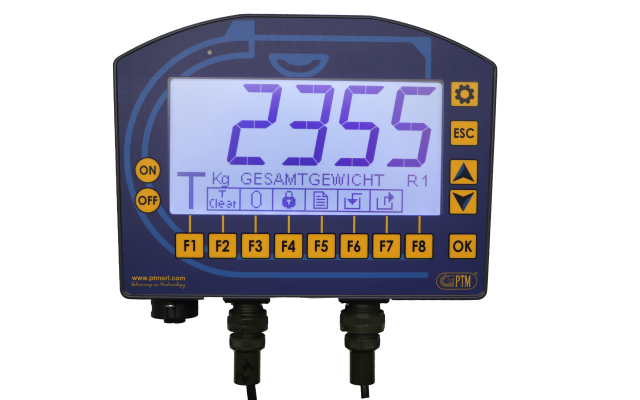

  Optional weighing device

  • All block distribution wagons can be equipped with a weighing device on request
  • PTM HL 50

  → Management of 50 recipes from up to 30 components

  Easy and safe distribution of whole round bales

  • Optional three-armed hydraulic retaining bow
  • Holds round bale silage directly at the beaters
  • 2,30 m width
  • 2,85 m³ volume

  Easy undoing of silo blocks or round bales

  • 2 effective beaters
  • Power required of 30 kW/40 HP
  • Undoing of whole round bales without any Problems
  • Infinitely variable crossover conveyor homogeneously discharges the material

• Type	BVW	UBVW
  Dimensions
  Length (m)	3,80
  Width (m)	2,30
  Height (m)	1,80	2,30
  Height with bale compressing rake lifted up (m)	-	2,85
  Discharge height cross conveyor (m)	0,52
  Tare weight
  Basic machine (kg)	1.700	2.000
  Power requirement
  Power requirement from (kW / HP)	30 / 40
  Required hydraulic power (bar)	170
  Required hydraulic power (l / min)	30
  Container dimensions (inside)
  Loading space L x W (m)	1,94 x 1,95
  Tailboard L x W (m)	0,91 x 1,92
  Volume
  Volume (m³)	2,85
