Picking-Up & Feeding Technology

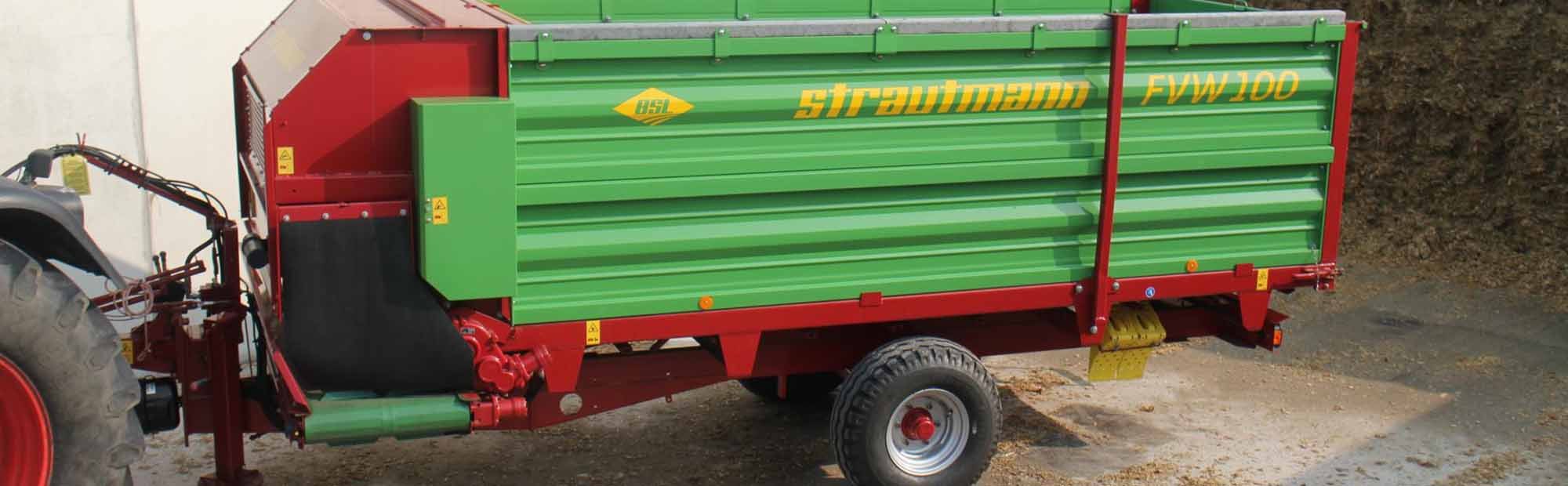

Strautmann Fodder Distribution Wagon

Robust design, easy operation and homogeneous fodder discharge are the great advantages of the Strautmann fodder distribution wagon.

Enquire now

  • Optimum fodder discharge - easy Operation

    Robust design, easy operation and homogeneous fodder discharge are the great advantages of the Strautmann fodder distribution wagon.

    • Four different sizes, from 10 - 16 m³
    • Front or rear distribution unit
    • Optimum distribution of fodder

    Standard dosing drums

    • Mounted in a closed casing for stability and long service life
    • FVW 100 & 120 2 drums
    • FVW 140 & 160 3 drums

    Additional mixing and dosing drum

    • Optional on FVW 100 & 120 models
    • Positioning over crossover conveyor
    • Better mixing of fodder by means of more swirling

    Slip-proof transport Floor

    • 13 mm strong transport floor chains
    • Robust strips for maximum heavy-duty conditions
    • Automatic chain tensioning
    • Hydraulic feed function for even transport of fodder

    Discharge options

    • Optional front or rear discharge possible
    • Robust crossover conveyor for right-hand and left-hand discharge
    • Crossover conveyor available with optional speed adjustment

    Weighing device - PTM HL 50

    • Weighing device available as an optional extra
    • Programmable without data Transfer
    • Enables accurate feeding

    Radio remote Control - PTM AV 70

    • Fits to HL 50 and PTM Advance Super USB
    • 30 m of range
    • Multi-Link compatible
    • Individual fixing on the charging vehicle by means of integrated magnet
    • Can be easily carried by hand

  • TypeFVW 100 / 100 H with tyres 11.5/80-15.3 (14 PR)FVW 120 / 120 H with tyres 13.5/75-430.9 (14 PR)FVW 140 / 140 H with tyres 13.5/75-430.9 (14 PR)
    Dimensions
    Height (m)2.322.452.95
    Width with cross conveyor slim type (m)2.15
    Width with cross conveyor wide type (m)2.30
    Length with cross conveyor front (m)6.507.306.50
    Length with cross conveyor rear (m)6.707.506.70
    Tare weight
    with single axle (kg)2.6602.9603.160
    with tandem axle (kg)2.8603.1603.360
    Gross vehicle weight rating
    Gross vehicle weight rating (kg)6.9007.8008.000
    Towbar load (kg)1.0001.2501.000
    Power requirement
    Power requirement from (kW / HP)30/4037/5044/60
    Container dimensions (inside)
    Box dimensions(L x W x H) (m)4.4 x 1.8 x 1.25.2 x 1.8 x 1.24.4 x 1.8 x 1.7
    Volume
    Volume (m³)101214
