Strautmann Verti-Mix Sf / Double Sf

Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.

Enquire now

Strautmann

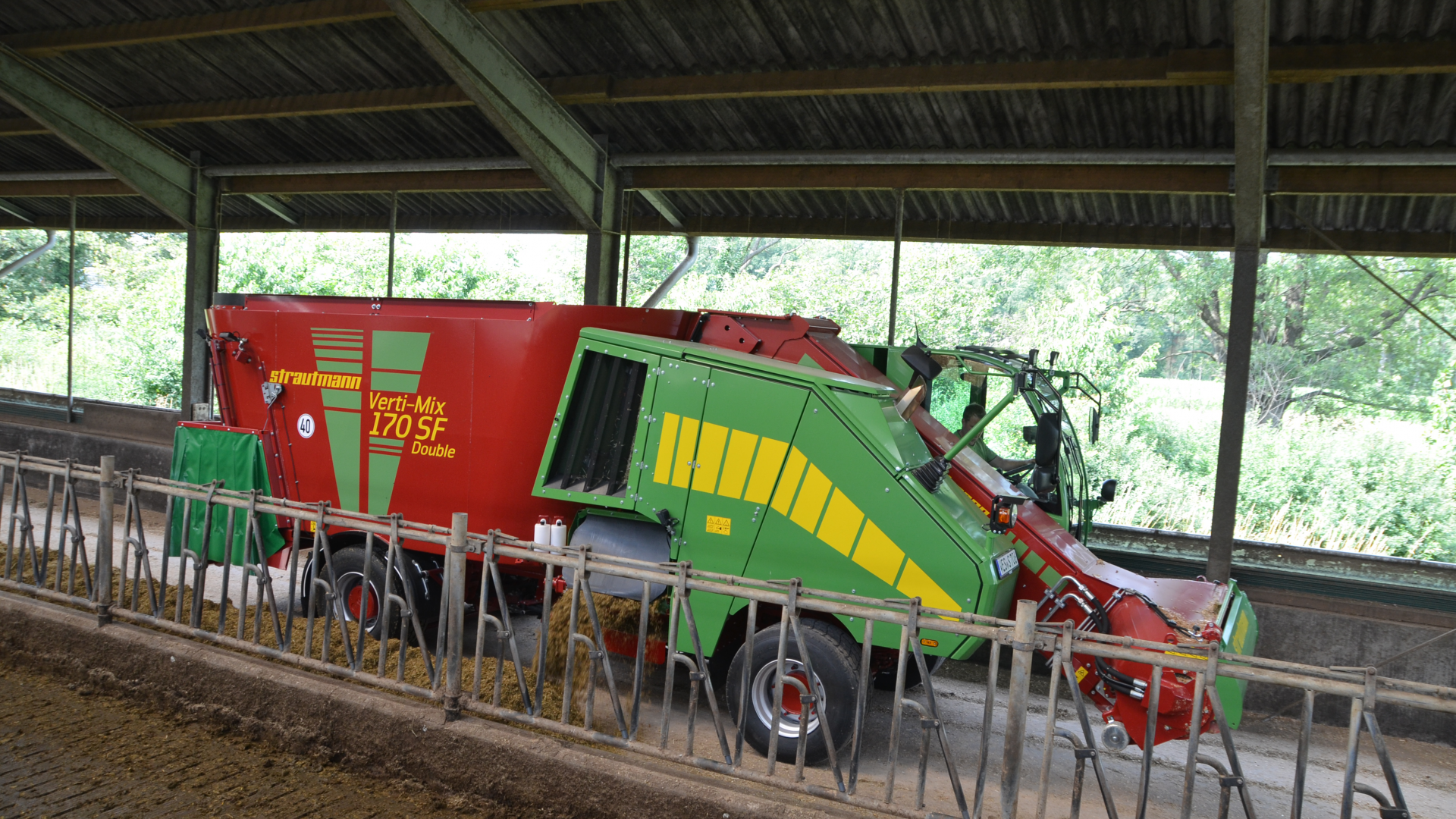

Verti-Mix SF - The self-propelled models
- Usable mixing capacity of 11 - 20 m³
- Silo picking-up and feeding with one machine
- Accurate feeding
- 6-cylinder engine for maximum power and low consumption
The IMS mixing auger – Variability and strength for any purpose
Due to the patented knife adjustment system, the IMS mixing auger can be perfectly adapted to your specific conditions of use. The robust and low-maintenance angular gear ensures a long service life even under challenging conditions.
- Low power requirement
- Optimum fodder structure
- Homogeneous mixing
- Energy-saving short mixing times
Milling system for optimum picking-up Performance

Discharge options - adapted to your enterprise
Weighing and operating
Engine and drive line
- 6-cylinder engine with emissions Level V
- Powerful and economical 
- Turbo-diesel engine with water cooling
- 129 kW/175 HP at 1,900 rpm 
- 714 Nm at 1,500 rpm

Type	Verti-Mix 1102 SF	Verti-Mix 1302	Verti-Mix 1502 SF
Dimensions
Width with cross conveyor (m)	2,42	2,42	2,42
Outer wheel width front (m)	2,12	2,12	2,12
Length with cross conveyor front (m)	7,28	7,38	7,55
Length with cross conveyor rear (m)	7,59	7,59	7,77
Width of elevator (m)	0,58	0,58	0,58
Diameter of milling roller (m)	0,67	0,67	0,67
Working width (m)	2,00	2,00	2,00
Removal height (m)	5,00	5,10	5,10
Tare weight
Basic machine from (kg)	10.600	10.700	10.860
Volume
Usable mixing capacity (m³)	11,0	13,0	15,0
Axle
Wheel base (m)	3,22	3,22	3,22
Height of vehicle depending on size of wheels

435/50 R19,5 (m)	2,84	3,17	3,17
235/75 R17,5 Zwilling (without intelligent steering control) (m)	2,76	3,09	3,09

455/45 R22,5 (m)	-	-	-

(* 50 mm variable height of vehicle with air suspension )
